532nm 穩頻雷射

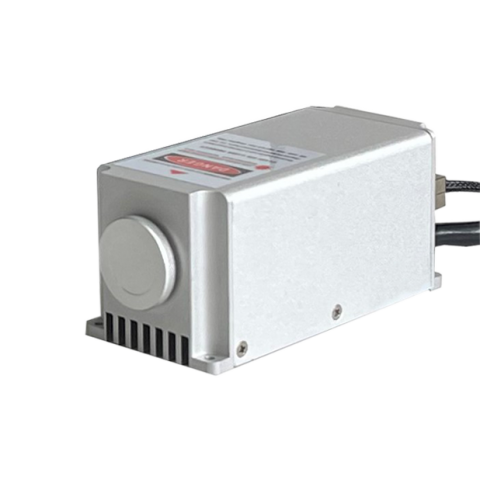

532nm單縱模雷射光源- MSL-WT-532(寬工作溫度範圍)

MSL-WT-532 single longitudinal mode laser is made features of ultra compact, long lifetime and wide operating temperature range .
詳細介紹

  • Features

  • Ultra Compact
  • Operating Temperature (°C): - 40~60
  • Spectral line width: <0.00001nm

  • Specifications
Model MSL-WT-532
Central wavelength (nm) 532±1
Operating mode CW
Output power (mW) <50, 100
Power stability (rms, over 4 hours) <1%
Noise of amplitude (rms, 1Hz~20MHz) <0.25%
Longitudinal mode Single
Spectral line width (nm) <0.00001
Transverse mode TEM00
M2 factor <1.2
Beam diameter at the aperture (1/e2, mm) ≦0.8
Beam divergence (mrad) ≦1.5
Polarization Ratio >100:1, (Horizontal or Vertical Optional)
Laser head dimensions(mm) 110×52×52
Warm-up time (minutes) <3
Operating Temperature (°C) -40~60
Storage temperature (°C) -40~60
Power consumption (W) <220@-40°C


  • Power Stability & Single Longitudinal Mode Testing
Power stability at -40 (0.149%) &  Longitudinal Mode at -40



Power stability at
60 (0.234%) &  Longitudinal Mode at 60
