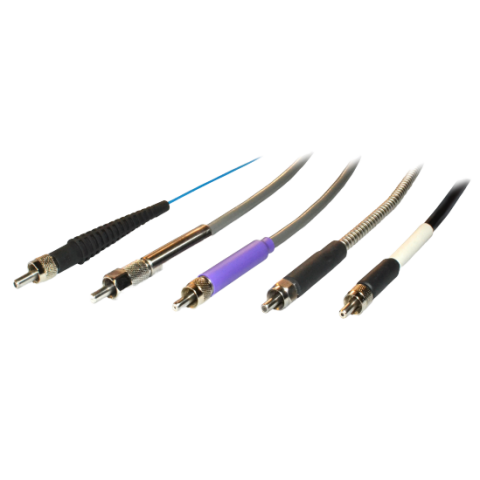

寬波段光纖-UV-VIS-NIR

寬波段光纖-UV-VIS-NIR

在台灣如海光電,我們以製造最高質量,最耐用的光纖而感到自豪。如果您每次都需要光纖才能正確運行,我們標準光纖帶有寬波段(185-2100nm)或UV/SR光纖(190-1100nm)。
如果您需要深紫外線(190nm及以下),請與我們聯繫以了解更多有關增強抗紫外(ESR)產品系列的資訊,還可以提供訂製長度、光纖類型、連接器和不同構造。
詳細介紹
  • 產品項目

    光纖類型 光纖芯徑(um) 外層護套
    Broadband (185-2100nm) 100um PVC/Stainless
    Broadband (185-2100nm) 200um PVC/Stainless
    Broadband (185-2100nm) 400um PVC/Stainless
    Broadband (185-2100nm) 600um PVC/Stainless

  • 產品規格

    Fiber Type Step-Index Multimode
    Fiber Core Size 100, 200, 400 or 600
    Fiber Core Material Pure Silica
    Fiber Buffer/Coating Polyimide
    Transmission Wavelengths

    Broadband Fiber: 185-2100nm

    UV/SR Fiber: 190-1100nm
    VIS-NIR: 300-1500 nm, 400-2500nm

    Numerical Aperture 0.22±0.02
    Full Acceptance Cone 25.4
    Connectors SMA905
    Jacket Silicone Monocoil or Fully Expanded BX Squarelock
    Inner Strength Member

    Silicone Monocoil: Built in strength member with fiberglass inner sheath

    Fully Expanded BX Squarelock: Fiberglass inner sheath

    Operating Temperature Range -20~250C

  • Fiber Attenuation Curves

    Broadband fiber (200-2200nm):

  • Borosilicate Fiber Bundles (300-1500nm):


  • Fiber model

Fiber Broadband
(185 – 2100 nm)
Core : 100µm GBB100-1-FCSMA GBB100-1-SMA
GBB100-2-FCSMA GBB100-2-SMA
Core : 200µm GBB200-1-FCSMA GBB200-1-SMA
GBB200-2-FCSMA GBB200-2-SMA
Core : 400µm GBB400-1-FCSMA GBB400-1-SMA
GBB400-2-FCSMA GBB400-2-SMA
Core : 600µm GBB600-1-FCSMA GBB600-1-SMA
GBB600-2-FCSMA GBB600-2-SMA
