532nm 穩頻雷射

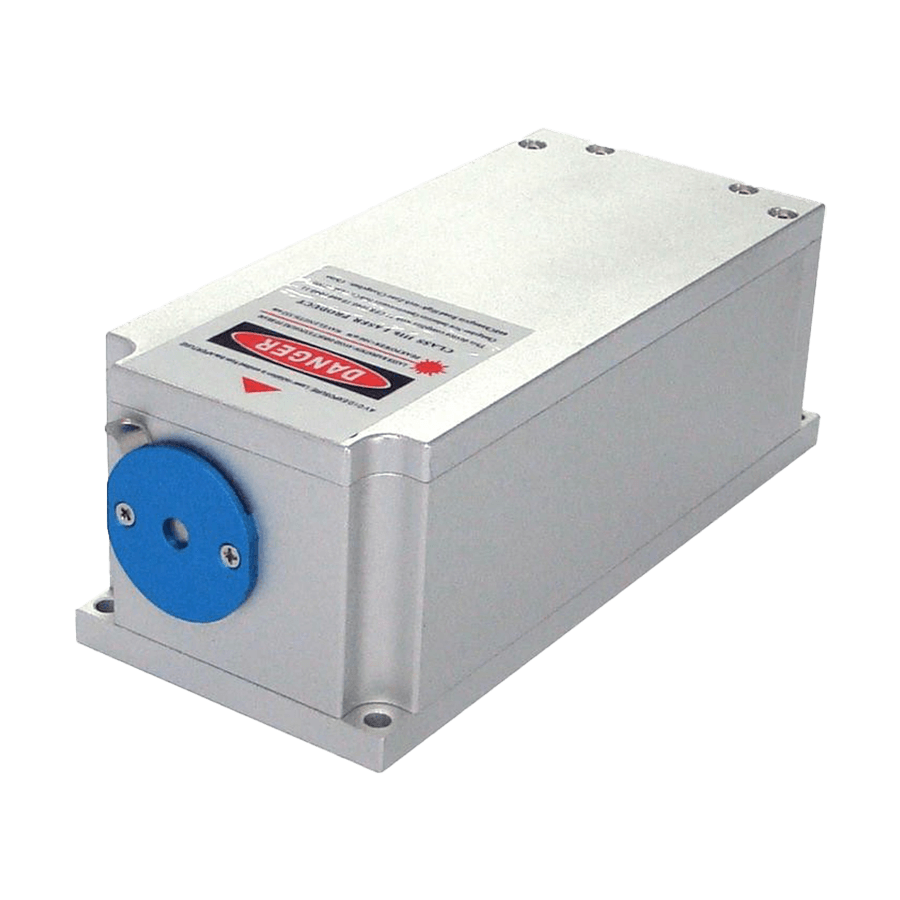

532nm單縱模雷射光源- MSL-U-532

The single longitudinal mode 532nm laser is made features of ultra compact, long lifetime, low cost and easy operating.
詳細介紹
It can be used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc.



  • Dimensional Drawing
    Laser Head Power Supply

    Laser Head
    142.5 (L)×60(W) ×50(H) mm3, 1.0 kg

    Power Supply
    75(L) ×145(W) ×104(H) mm3, 2.3 kg

  • Specifications
Model MSL-U-532
Wavelength (nm) 532±1
Operating mode CW
Output power (mW) 1-800
Power stability (rms, over 4 hours) <2%, <3%, <5%
Transverse mode TEM00
Longitudinal mode Single
Spectral line width (nm) <0.00001
Noise of amplitude (rms, 1Hz~20MHz) <0.5%, <1% (0.25% Optional)
M2 factor <1.2
Beam diameter at the aperture (1/e2, mm) <1.0
Beam divergence (mrad) <1.5
Polarization Ratio >100:1, (Horizontal or Vertical Optional)
Warm-up time (minutes) <5
Pointing stability after warm-up (mrad) <0.05
Coherent length (m) >50
Beam height from base plate (mm) 27.4
Laser head consumption(W) 15 (typical), <25 (40)
Max. Laser Head Base plate Temp (°C) 50
Operating Temperature (°C) 10-40
Power supply (90-264VAC) PSU-H-FDA
Expected lifetime (hours) 10000
Warranty 1 year
Note: The laser head needs to be used on a heat sink with good heat dissipation.
