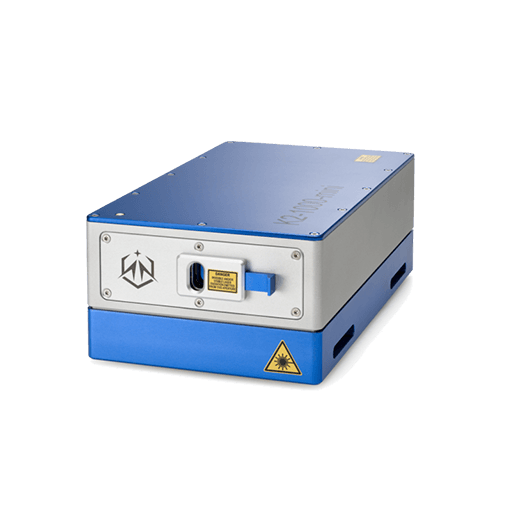

K2-1000-mini is a powerful ultralow noise turn-key laser for OEM integration. The laser is available as a modelocked femtosecond light source or as a dual-comb modelocked light source, producing two pulse trains from the same cavity (option). This laser is ideal for optical frequency comb applications, precision ranging, gas sensing, pump-probe as well as traditional laser oscillator applications, such as two-photon microscopy, amplifier seeding, and timing distribution.
Special wavelength options
Dual comb specifications (option)
Controls
Physical dimensions
Requirements
-
Features
Fully integrated laser ready for applications
- 1 GHz repetition rate
- >1.5 W per beam
- <200 fs pulse duration
- Sub-cycle relative timing jitter
- Ultra-low relative intensity noise
- Ultra-compact system design

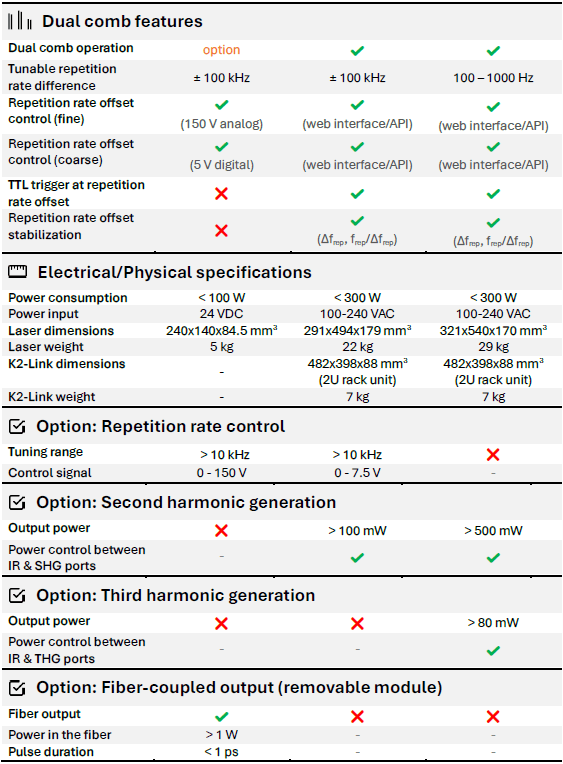

- Dual-comb modelocked option
-
Technical Specifications
Laser specifications
| Power per comb | >1.5 W |
| Pulse duration | <200 fs, clean sech2 pulses, <100 fs option available |
| Repetition rate | 1 GHz |
| Pulse energy | >1.5 nJ |
| Center wavelength | 1050 +/- 20 nm |
| Beam quality factor M2 | <1.1 |
| Beam ellipticity | <10 % |
| Timing-jitter PSD (fs2/Hz) | <0.01 fs2/Hz for frequencies >1 kHz |
| Individual comb RIN | <-160 dBc/Hz for frequencies >1 MHz |
Special wavelength options
| Center wavelength | Power per comb |
| 1050 nm (default) | > 1.5 W |
| 1450 nm | >200 mW |
| 1550 nm | >500 mW |
| 1645 nm | >500 mW |
| 2400 nm | >400 mW |
| 3300 nm | >100 mW |
Dual comb specifications (option)
| Repetition rate difference | tunable to more than +/- 100 kHz |
| Relative timing noise | <10 fs [1 kHz, 100 kHz] |
Controls
| Repetition rate | frep actuation via piezo 0 – 150 V (option) |
| Repetition rate difference | Δfrep actuation via piezo 0 – 150 V and coarse via motor (if applicable) |
| Power modulation | Pump diode current modulation capability for fCEO locking |
Physical dimensions
| Laser head (L x W x H) | 240 x 140 x 85 mm3 (all-in-one system) |
| Beam output height | 60 mm on (W) side |
Requirements
| Operating temperature | 15 – 30 ºC with <25°C baseplate (contact cooling) |
| Relative humidity | <70% (non-condensing) |
| Power consumption | <100 W |
| Electrical requirements | 24 VDC, 5 A |
-
Options
- Wavelength options (inquire)
- Fiber coupled output
- Lower power consumption option
- Broadband configuration
-
Applications
- Multi-species gas sensing
- Time-resolved spectroscopy
- Nonlinear microscopy
- Precision ranging
-

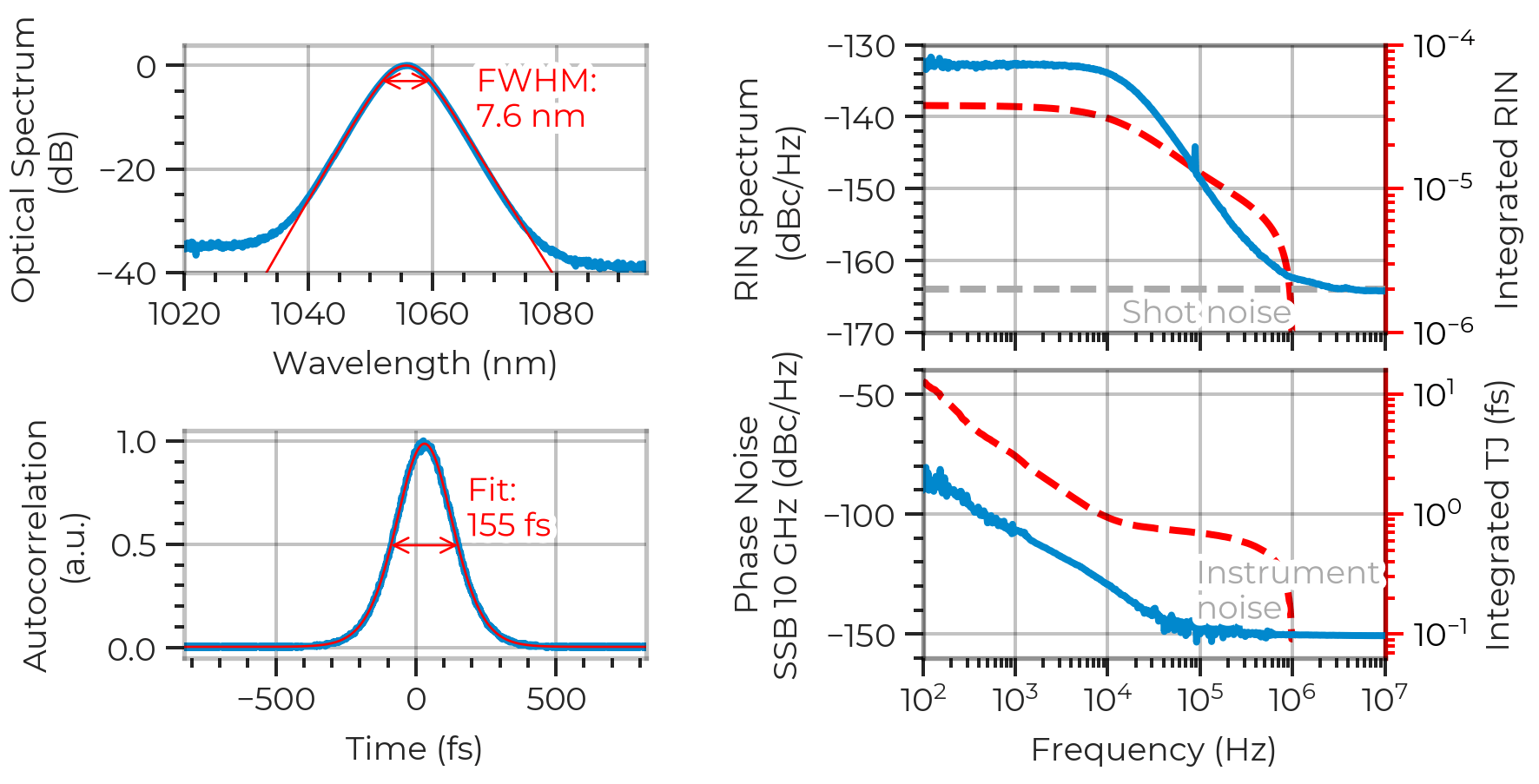

Example Characterization
Optical spectrum
Relative intensity noise
Microwave spectrum
Timing jitter
Relative intensity noise
Microwave spectrum
Timing jitter
